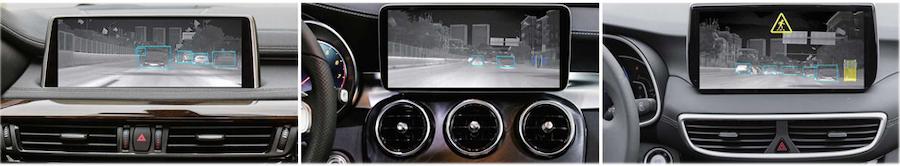

Our car night vision products include 640 * 512, 384 * 288, 256 * 192 resolution thermal imaging night vision camera, support for CVBS, UVC signal input thermal imaging car auxiliary algorithm controller (ECU), support for more than 95% of the common car models in the market dedicated decoding algorithm all-in-one thermal imaging night vision products. The launch of the above products will break the automotive aftermarket lack of application in the night without light, glare, smog and other adverse weather conditions to improve driver safety, the status quo of related products, but also can be widely used in passenger cars, commercial vehicles, special vehicles, assisted driving, intelligent transportation, vehicle and road co-operation scenarios such as all-weather identification of people, vehicles, low-speed unmanned vehicles, self-driving program.

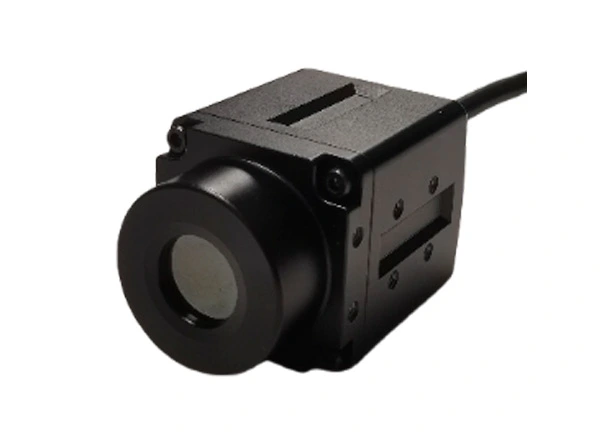

| Economy in car thermal imaging |  | Detector: 256 * 192, 12 μ M Lens: 10mm, FOV 18 ° * 13 ° Output: AHD Voltage: DC12V Automatic defrosting: supports protection: IP67 Working temperature: -30 ℃ -70 ℃ Size: ≤ 32 * 32 * 49 (mm) |
| Economy in car thermal imaging (Intelligent recognition) |
| Detector: 256 * 192, 12 μ M Lens: 10mm, 18 ° * 13 ° Output: Digital (UVC) Automatic defrosting: supported Protection: IP67 Working temperature: -30 ℃ -70 ℃ Size: ≤ 32 * 32 * 49 (mm) |
| Universal in car thermal imaging |  | Detector: 384 * 288, 12 μ M Lens: 13.5mm, 20 ° * 15 ° Output: Analog Video (CVBS) Automatic defrosting: supported Protection: IP67 Working temperature: -30 ℃ -70 ℃ Size: ≤ 42 * 42 * 75 (mm) |
| Universal in car thermal imaging (Intelligent recognition) |
| Working voltage: 9-36V Video output: CVBS, USB Automatic recognition: pedestrians, non motor vehicles, motor vehicles Recognition distance:>110m Other: GPS, warning horn, CAN, RS232 |
| High definition in car thermal image |  | Detector: 640 * 512, 12 μ M Lens: 16mm, 32 ° * 26 ° Output: Analog Video (CVBS) Automatic defrosting: supported Protection: IP67 Working temperature: -30 ℃ -70 ℃ Size: ≤ 42 * 42 * 75 (mm) |
| High definition in car thermal image (Intelligent recognition) |   | Working voltage: 9-36V Video output: CVBS, USB Automatic recognition: pedestrians, non motor vehicles, motor vehicles Recognition distance:>110m Other: GPS, warning horn, CAN, RS232 |
Number | Project name | EXA-LT200 | EXA-LT150 |
1 | laser light source | 905nm, ≤10mW; Class I laser human eye safety requirements | 905nm, ≤10mW; Class I laser human eye safety requirements |
2 | laser light source | Class 1 | Class 1 |
3 | ranging frequency | 20--5000Hz adjustable | 20--20000Hz adjustable |
4 | working distance | 0.05m-200m | 0.05m-150m |
5 | 50% reflectivity | 200m | 150m |
6 | response time | 100ms（adjustable） | 100ms（adjustable） |
7 | system error | ±50mm | ±50mm |
8 | continuous error | ±30mm | ±30mm |
9 | working voltage | 9-40V | 9-40V |
10 | interface | RS232 serial port | 3.3VTTL serial port |
11 | power consumption | ＜2W | ＜1W |
12 | weight | ＜220g | ＜100g |
13 | dimension (lwh) | 72mm×53mm×34mm | 33mm x34mm x18mm |
14 | protection class | IP67 | |
15 | operating temperature | -40℃-+60℃ | -40℃-+60℃ |
16 | storage ambient temperature | -50℃-+105℃ | -50℃-+105℃ |
LT series ranging module has good measurement accuracy, for most of the measured object surfaces with different reflectivity, its measurement error can reach within 20mm within the range, and the measurement fluctuation (1σ) can be controlled within 10mm, which can satisfy the needs of scene measurement, positioning guidance and other applications.
LT's tolerance to supply voltage fluctuation reaches 15%, which can resist the influence of strong electromagnetic interference, and its operating temperature range reaches -40℃~+60℃, ensuring its outdoor performance.
Remote measurement without cooperative targets;
Wavelength 905
Measurement accuracy of 20mm;
Anti-vibration;
Operating temperature -40℃~+60℃;
