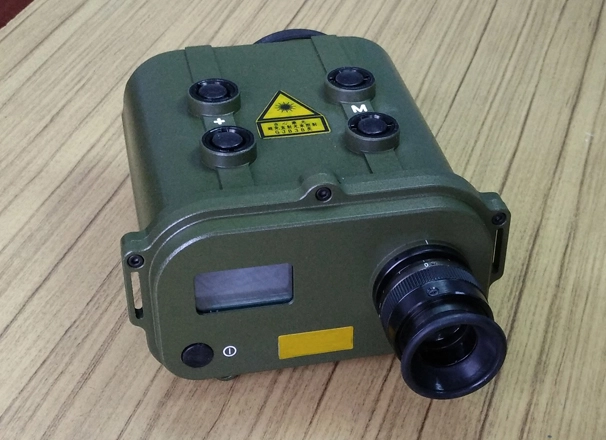

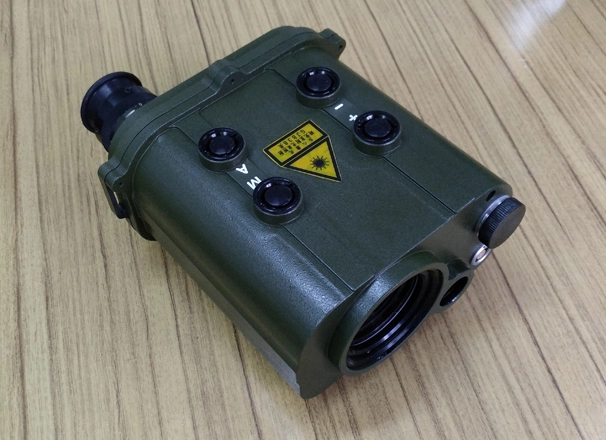

EXA-HD10PU handheld laser rangefinder is a new generation of military telescope rangefinder with modern electronics, optics, laser technology to accurately measure the distance, has a small size, light weight, long range, easy to operate, small ranging error, good sealing performance, high reliability, etc. It is suitable for distance measurements in the fields of waterways, river beds, postal and electrical cables and power cables erected, oil fields and mines, railroads, and highway construction, etc. It is also set up with the standard RS232 serial interface and mechanical coupling, and it can be conveniently realized as the signal transmission, which can be paired with the goniometer to realize the determination of the target orientation.
| Ranging performance | |
| Minimum range | not more than 50 meters |
| Maximum range | 9999 meters |
| Effective range | not less than 6000 meters |
| Ranging accuracy | ± 1 meter (30m ~ 1000m), ± 2 meters (1000m ~ 10000m) |
| Distance resolution | not more than 30 meters |
| Repeat frequency | 6 times/minute, continuous work; 10 times/minute in case of emergency, rest 1 minute. |
| Distance selective pass range | 10m-6000m continuously adjustable, and can be displayed in the eyepiece in digital form of its precise data. |
| Quasi-measurement rate | not less than 98% |
| It can measure straight line distance, angle, horizontal distance, vertical distance and so on. | |
| Telescope optical performance | |
| Visual magnification | 7 times |
| Field of view | 7 degrees |
| Diameter of exit pupil | 6 millimeters |
| Exit Pupil Distance | 20mm |
| Resolution | 8 seconds |
| Main Performance | |
| Power supply | Use two models of 18350, capacity 800 mAh rechargeable lithium batteries, fully charged batteries at room temperature (25 ± 5 ℃) distance measurement more than 600 times, distance measurement process, the panel display has a "battery symbol" shows the battery power, low battery, you should charge the battery instantly. However, in case of emergency, it can still measure the distance 20 times. |
| Data interface | standard RS232 serial interface. |
| Environmental adaptability | |
| Working temperature | -40~+55℃. |
| Maximum relative humidity | 95~98 |
| The host structure is sealed waterproof design, anti-vibration design | |
| External Dimensions and Weight | |
| Overall dimensions | 202 x 150 x 90 mm (at maximum) |
| Weight | less than 1.5 kg |
Remote measurement without cooperative targets;
Nd: YAG laser, wavelength 1.064 microns
Effective measuring range of 6000 meters or more;
Measurement accuracy of 0.5 meters;
Two targets can be measured by one laser;
Digital distance selection pass arbitrarily optional;
Horizontal angle of the target, height measurement;
Night aiming crosshairs backlight illumination;
10 target data storage, access;
Laser work times statistics;
RS232 data interface;
Sealed waterproof, anti-vibration;
Operating temperature -40℃～+55℃.
