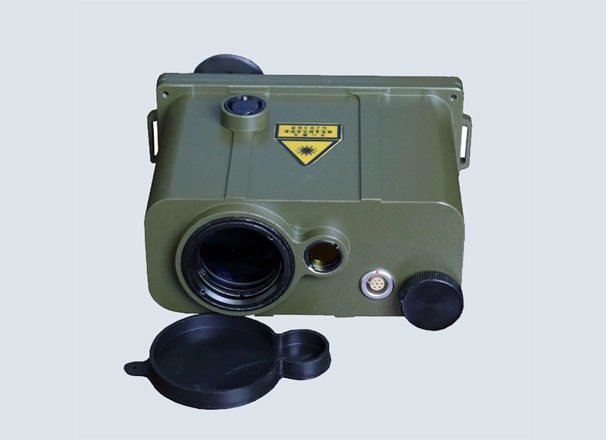

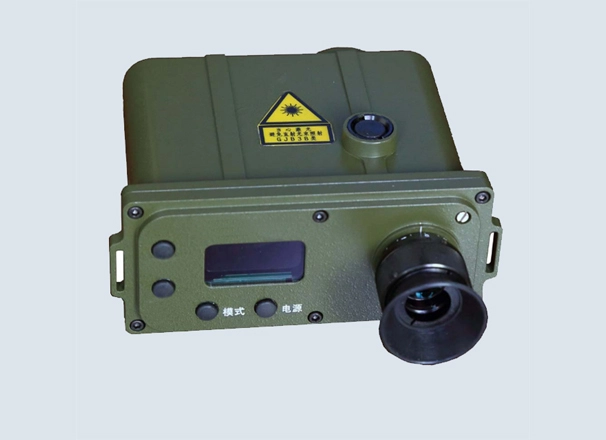

EXA-HD5PU handheld laser rangefinder is a new generation of military telescope rangefinder with modern electronic, optical and laser technologies to measure the distance accurately, featuring small size, light weight, long range, easy operation, small ranging error, good sealing performance, high reliability, etc. It is suitable for distance measurements in the fields of waterways, river beds, postal and electrical cables and power cables erected, oil fields, mines, railroads and highways, etc. It is also set up with a standard RS232 serial port and a mechanical coupling port to conveniently realize the transmission of signals, which can be paired with the goniometer instrument to realize the determination of the target's orientation.
| Ranging performance | |
| minimum range | not more than 30 meters |
| maximum range | 9999.9 meters |
| effective range | not less than 6000 meters (in the rangefinder telescope system can be more clearly identify the target weather conditions, the area of not less than 12 square meters of square or round plane target). |
| distance measurement accuracy | 0.5 meters (medium error) |
| distance resolution | not more than 30 meters |
| repeat frequency | 6 times / min, continuous work; 12 times / min in case of emergency, measuring 2 minutes, rest 1 minute, can work continuously. |
| distance selective pass range | 30 meters-5000 meters continuously adjustable, and can be in the eyepiece in the form of digital display of its precise data. |
| quasi-measurement rate | not less than 98% |
| Telescope optical performance | |
| visual magnification | 6 times |
| field of view | 6.5 degrees (horizontal) |
| diameter of exit pupil | 5.2 millimeters |
| exit pupil distance | 20.3mm |
| resolution | 7.79 seconds |
| Main performance | |
| power | use two 16340 700mAh, 3.7V rechargeable lithium batteries, fully charged batteries at room temperature (25 ± 5 ℃) more than 600 times the distance measurement, rangefinder use process, the panel display has a "battery symbol" shows the battery power, power is low, you should charge the battery instantly. |
| data interface | standard rs232 serial interface. |
| operating temperature | -40~+55℃ |
| maximum relative humidity | 95~98%. |
| External dimensions and weight | |
| overall dimensions | 150 x 136 x 62 mm (at maximum) |
| weight | less than 1 kg |
Remote measurement without cooperative targets;
Nd: YAG laser, wavelength 1.064 microns
Effective measuring range of 6000 meters or more;
Measurement accuracy of 0.5 meters;
Two targets can be measured by one laser;
Digital distance selection pass arbitrarily optional;
Horizontal angle of the target, height measurement;
Night aiming crosshairs backlight illumination;
10 target data storage, access;
Laser work times statistics;
RS232 data interface;
Sealed waterproof, anti-vibration;
Operating temperature -40℃～+55℃.
