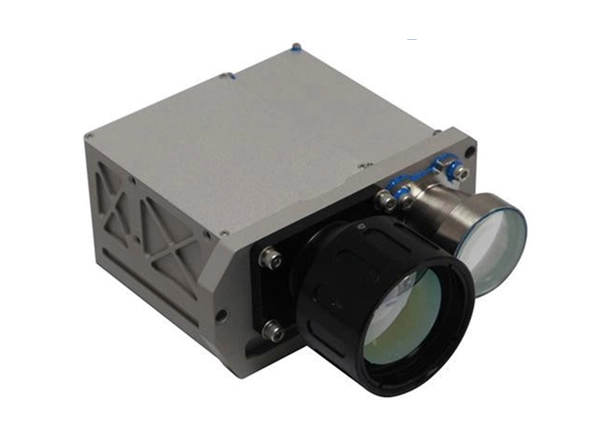

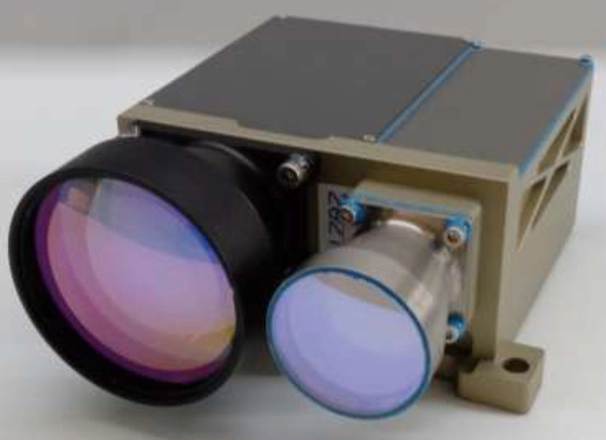

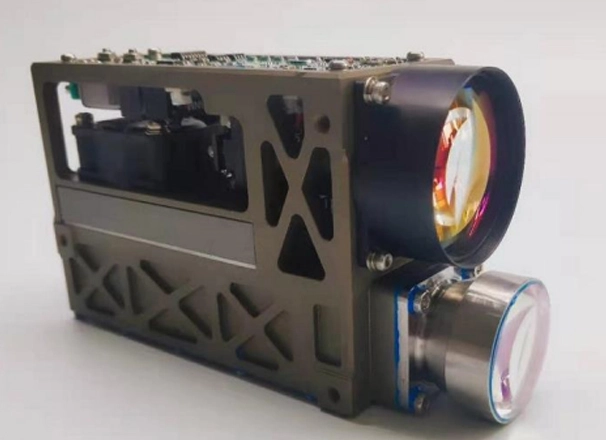

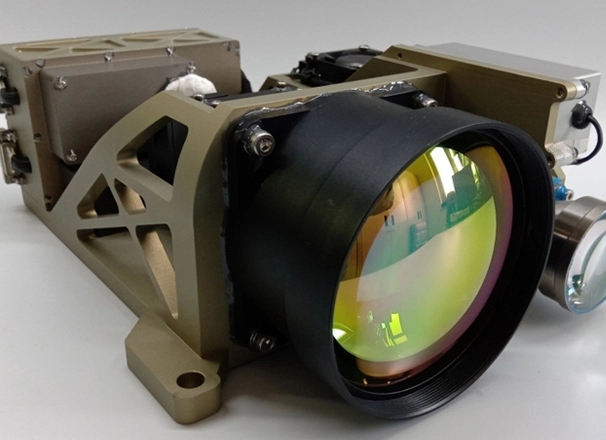

EXALP laser distance measuring module is a new generation of military distance measuring equipment that combines modern electronic, optical and laser technologies to accurately measure the distance, featuring small size, light weight, long range, easy operation, small distance measuring error, high reliability, etc. It is suitable for distance measurements in the fields of airborne, shipborne, and vehicle-mounted, etc. It is also set up with a standard RS422 serial interface and a mechanical coupling port, which can conveniently realize the transmission of signals.
Number | Description of indicators | EXALPU35A42E | EXALPU25A42E | EXALPU20A42E | EXALP03-15 | |
1 | laser wavelength | 1064nm | 1064nm | 1064nm | range 3km～15km | |
2 | ranging capability | constructions | ≥35km | ≥25km | ≥20km | |
traffic | ≥25km | ≥20km | ≥15km | |||
people | ≥15km | ≥6km | ≥5km | |||
3 | Maximum distance measurement | 35km | 25km | 23km | ||
4 | away from the door | communication order | communication order | communication order | ||
5 | Ranging accuracy | 2m | 2m | ±1m | ||
6 | operating frequency | 5～20hz | 5～10hz | 5～10hz | ||
7 | angle of divergence | ≤0.5mrad | ≤0.3mrad | ≤0.5mrad | ||
8 | calibration rate | 98% | 98% | 98% | ||
9 | single pulse energy | ≥80mj | ≥20mj | ≥10mj | ||
10 | dimensions（mm) | 250×200×110 | 175×141×79 | 173×139×65 | ||
11 | weights | ≤3600g | ≤1700g | ≤1800g | ||
12 | electricity | DC18V～36 V | DC18V～36 V | DC18V～36 V | ||
13 | average power consumption | average≤150W peak≤200W | average≤80W peak≤120W | average≤60W peak≤90W | ||
14 | communication interface | RS422 | RS422 | RS422 | ||
15 | operating temperature | -40~60℃ | -40~60℃ | -40~60℃ | ||
16 | storage temperature | -55~75℃ | -55~75℃ | -55~75℃ | ||
17 | impact resistance | 30g | 30g | 30g |
Remarks:
Building, visibility ≥20km, target reflectivity ≥0.2
Vehicle (2.3m×2.3m), air-to-ground, visibility ≥20km, target reflectivity ≥0.2
People, 0.5m×1.8m target, visibility ≥20km, target reflectivity ≥0.2
Wavelength: 1064nm/1535 nm/1570 nm
Long distance
Small volume and weight
Low power consumption
Long continuous working time
Good environmental adaptability
Working temperature -40℃～+60℃
