Millimeter Precision Ranging Module

Technical Specification of Millimeter Precision Ranging Module

1. EXA_ LPH01ERS232 laser ranging module

• Function settings

Please contact the relevant sales personnel

• Explanation

1. At no time should the laser be directed towards the human body;


2. At any time, it is not possible to distance high reflective targets, such as mirrors, highly polished metals, etc. Cannot measure distance with diagonal reflectors.


3. After continuous ranging for more than one minute, issue a standby command to stop the laser emission.


4. Ensure that the laser lens is clean.


5. Pay attention to the wiring definition and ensure that the power supply cannot be reversed.


6. Multiple target functions can be added according to customer needs.

• Laser safety instructions

It is strictly prohibited to use the rangefinder for play to avoid eye injury.

• Maintenance and upkeep

Laser rangefinder is a precision optical instrument with electronic components and must be carefully maintained.

The rangefinder should be stored in a clean and dry environment away from light. The appearance of the laser rangefinder should be checked regularly, and the outer surface should be free of dust, dirt, grease, water vapor, mold, and rust. Optical lenses should be taken care of as much as the eyes, and do not touch them with your fingers to avoid damaging the anti reflection film of the lenses. If there is dust on the surface of the lens, use a brush to brush off the dust, and gently wipe the surface of the optical lens with a velvet cloth or paper used to wipe the camera lens to avoid scratching the surface of the lens.

Do not open the casing of the rangefinder, as there is high voltage inside the instrument to avoid being injured by high voltage. There is a high-power laser inside the instrument. If the instrument is disassembled, there is a risk of eye injury under the radiation of the laser. If a malfunction is found, it should be reported or sent to a specialized maintenance department for repair.

2. EXA_ LPH03ERS232 laser ranging module

• Function settings

Please contact the relevant sales personnel

• Explanation

1. At no time should the laser be directed towards the human body;

2. At any time, it is not possible to distance high reflective targets, such as mirrors, highly polished metals, etc. Cannot measure distance with diagonal reflectors.

3. After continuous ranging for more than one minute, issue a standby command to stop the laser emission.

4. Ensure that the laser lens is clean.

5. Pay attention to the wiring definition and ensure that the power supply cannot be reversed.

6. Multiple target functions can be added according to customer needs.

• Laser safety instructions

It is strictly prohibited to use the rangefinder for play to avoid eye injury.

• Maintenance and upkeep

Laser rangefinder is a precision optical instrument with electronic components and must be carefully maintained.

The rangefinder should be stored in a clean and dry environment away from light. The appearance of the laser rangefinder should be checked regularly, and the outer surface should be free of dust, dirt, grease, water vapor, mold, and rust. Optical lenses should be taken care of as much as the eyes, and do not touch them with your fingers to avoid damaging the anti reflection film of the lenses. If there is dust on the surface of the lens, use a brush to brush off the dust, and gently wipe the surface of the optical lens with a velvet cloth or paper used to wipe the camera lens to avoid scratching the surface of the lens.

Do not open the casing of the rangefinder, as there is high voltage inside the instrument to avoid being injured by high voltage. There is a high-power laser inside the instrument. If the instrument is disassembled, there is a risk of eye injury under the radiation of the laser. If a malfunction is found, it should be reported or sent to a specialized maintenance department for repair.

Features of Millimeter Precision Ranging Module

1. EXA_ LPH01ERS232 laser ranging module

LPH01ERS232 has good measurement accuracy. For most surfaces of objects with different reflectivity, the measurement error can reach ± 1mm in the range of 0.05-100 meters and 90% reflectivity, which can meet the needs of scene measurement, positioning guidance and other applications.

• Close range measurement without cooperative targets;

• Wavelength 650

• The measurement accuracy is ± 1mm;

• Measure natural objects/reflective films;

• Working temperature -10 ℃ to+50 ℃.




2. EXA_ LPH03ERS232 laser ranging module

LPH02ERS232 has good measurement accuracy. For most surfaces of objects with different reflectivity, the measurement error can reach ± 1mm in the range of 0.05-300 meters, which can meet the needs of scene measurement, positioning guidance and other applications.

• Close range measurement without cooperative targets;

• Wavelength 650

• The measurement accuracy is ± 1mm;

• Measure natural objects/reflective films;

• Working temperature -10 ℃ to+50 ℃.

Wiring Definition of Millimeter Precision Ranging Module

1. EXA_ LPH01ERS232 laser ranging module

2. EXA_ LPH03ERS232 laser ranging module

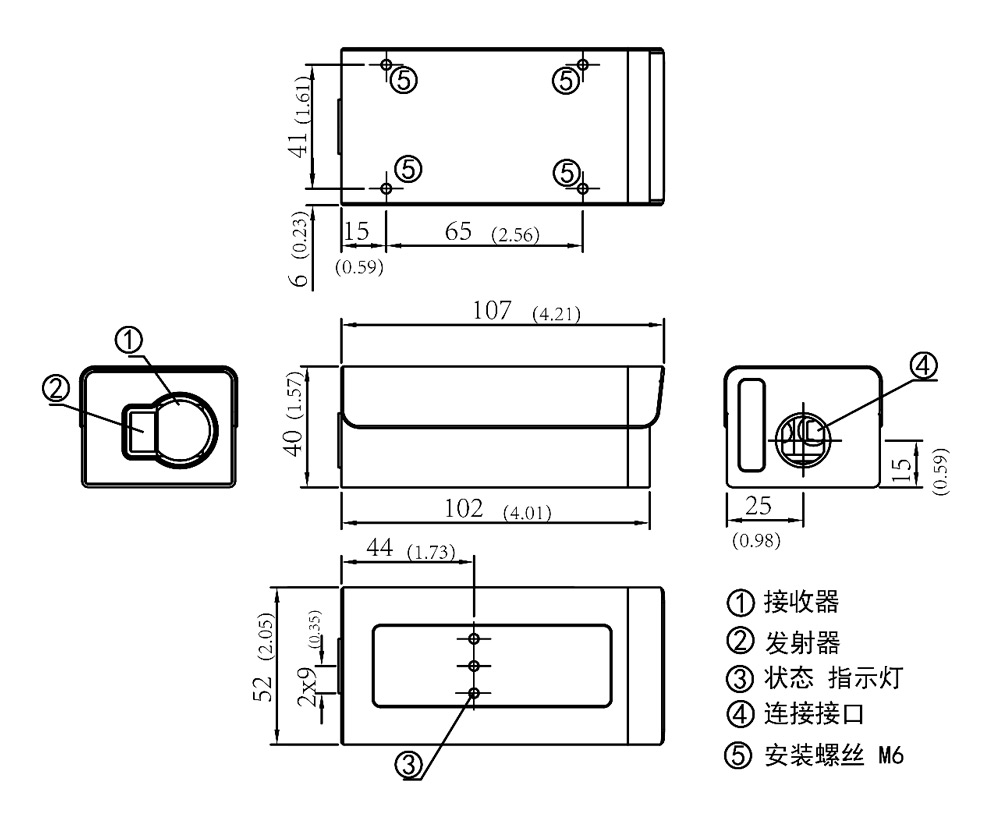

Structure Size of Millimeter Precision Ranging Module

1. EXA_ LPH01ERS232 laser ranging module

2. EXA_ LPH03ERS232 laser ranging module
