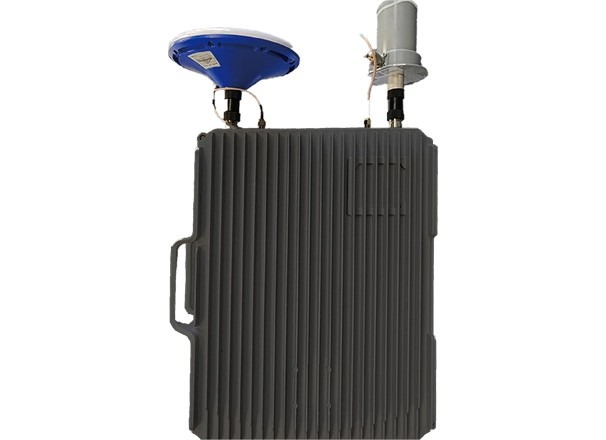

The navigation decoy device is specially developed to deal with various security threats brought by UAVs. By radiating low-power regenerative navigation satellite signals (the power is no more than 1W), it can invade the UAVs navigation system, so as to intercept and control the UAVs that need to use the navigation system for flight control, so that it cannot fly into the protected area and ensure the low- altitude safety of the area.
Support band | GPS L1，GLONASS L1，Beidou and so on |
Signal transmitting power | ≤10dBm |
Defensive distance | 500m≤R≤1000m |
The ablility to work continuously and independently | 24 hours autonomous operation |
Policy support | Defense Mode, No-fly Mode, Directional eviction (optional) |
Signal intrusion time | ≤10s |
Overall power consumption | ≤70w |
Operating temperature | -40°C ～ +70°C |
Product weight | ≤10kg（no Cable） |
Explosion-proof class | Ex nA IIC T6 |
Explosion-proof class | IP65 |
Explosion-proof class | 355mm×351mm×185mm |
