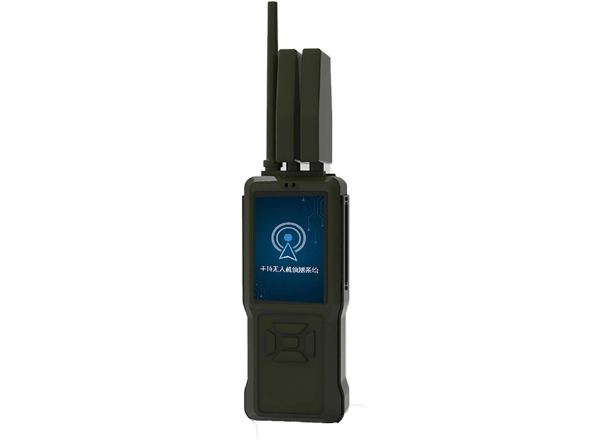

The handheld UAV direction finding system integrates a variety of technologies such as collaborative spectrum sensing and deep neural network. Through radio detection technology, the system uses the received UAV characteristic signals, big data processing, artificial intelligence and machine learning to achieve effective detection, identification and orientation tracking of low-altitude UAVs in defense areas.
Product function | Drone detection, identification, early warning, sound, light and vibration alarm |
Operating frequency band | 433/845/915/1440/2450/5200/5800MHz |
Detection range | 2000m |
Endurance time | Normal mode: Continuous target (7h) Standby mode: No target (9.5h) |
Charging time | Support fast charge, 3h full |
Device size (excluding antenna) | W:87mm L:204mm T:49mm |
Antenna size | D:18mm L:190mm |
Equipment weight | 690g |
Operating temperature | -20～55℃ |
Recognition ability | Can identify mainstream and other UAV |
Strong and durable | reinforcing design |
Battery capacity | 5000mAh 37Wh 7.4V |
Detection time | 12 frequency band scanning time: 8s |
Target display | The screen displays drone information in real time |
Battery size | W:79mm L:104.5mm T:25mm |
Detection type | Spectrum identification |
Class of protection | IP66 |
Screen size | 3.5 inch， resolution: 320 * 480 |
