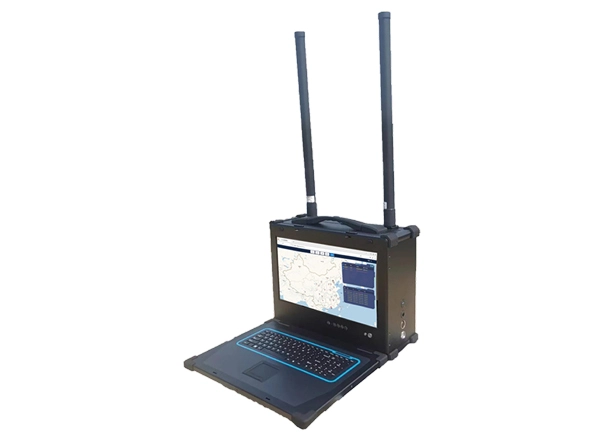

UAV and Pilot Positioning System EXA-FS-001

UAV and Pilot Positioning System EXA-FS-001

The UAV and pilot positioning system includes mobile hardware and a locally installed web application system that can locate multiple UAVs and their controllers at the same time within a certain range. The system continuously monitors the surrounding RF environment and displays the geographic location of the drone and remote control.


The principle of the system is to receive the drone beacon signal and decode the information in the radio message. By utilizing UAV detection technology, various information can be extracted, including but not limited to the UAV model (SN code), geographical location of the remote control, return point location, current UAV position, flight speed, flight altitude, and additional data. The system includes apis for forwarding inspection data to other systems, facilitating connections between individual systems.

Online Consultation

Technical Specification of UAV and Pilot Positioning System EXA-FS-001

Detection range

0-2KM (The range depends on the antenna installed on the device)

Detection time

Under normal circumstances ≤30 seconds (the detection time may change as the distance of the drone increases)

Overall power consumption

50W

Temperature resistance

- 30℃~50℃

weight

15KG

Drone models can be detected

DJI Phantom 3, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300,

dimension

460*370*200mm


Features of UAV and Pilot Positioning System EXA-FS-001

  • The single device can display the position of the flying hand in real time

  • It can locate the flying position of the drone

  • The unique serial number of the UAV can be identified

  • Multi-unit networking

  • Second-level deployment, ready to boot

  • Suitcase portable design, small size, carry around
