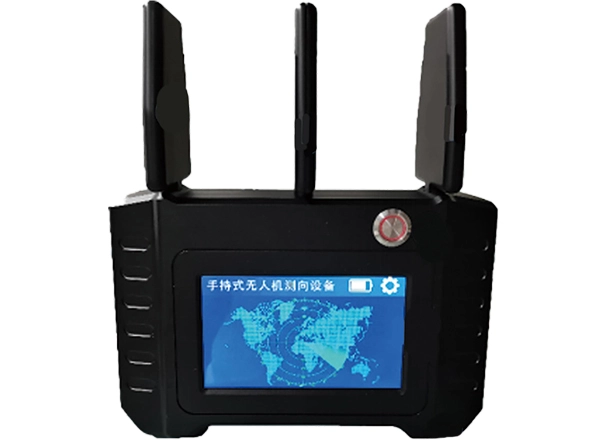

The handheld UAV direction finding device integrates spectrum sensing and artificial intelligence technology, with reconnaissance, direction finding, display control and networking functions, and can effectively detect and identify all kinds of "unqualified flight" drones.
Screen control | Standard configuration |
Screen display | Uav model and picture, frequency band information, UAV signal strength |
Control button/touch | Power supply, volume/vibration control, brightness adjustment, mode conversion, direction recognition |
Alarm mode | Sound, vibration, interface display (alarm cycle can be adjusted) |
Detection band | 1.4G:800-1500MHz 2.4G/WіFі: 2400-2485MHz 5.2G/5.8G High speed drone UAV FРV: 5150-6000МНz |
Detection range | >2.5km（open area） |
Detector type | Fixed wing UAV /FРV/Rасіng/WіFі /DIY UAV |
Detection response speed | ＜3s |
Direction finding accuracy | ＜20° |
False alarm rate | ≤5% |
Missing report rate | ≤5% |
Main engine weight | 1.2Kg |
Class of protection | ≥IP54 |
Operating temperature | -20 ~ 50℃ |
Power supply | built-in lithium battery 12hours 28V/3000mAh |
Standard configuration | omni antenna*1:2.4GHz 和 5.8GHz（customizable frequency band） directional antenna*2: 2.4GHz和5.8GHz（customizable frequency band） Charger * 1, protective case *1 |
