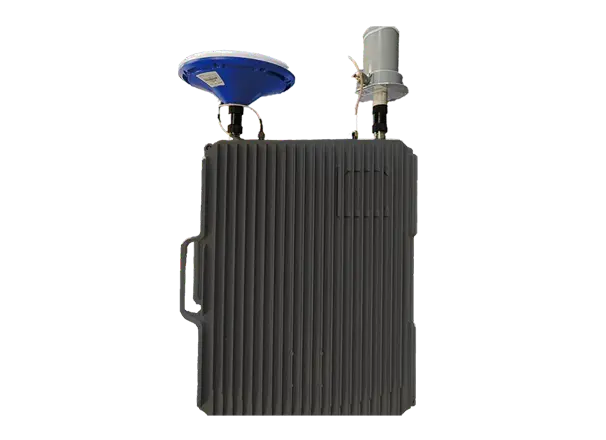

The navigation decoy device is specially developed to deal with various security threats brought by UAVs. By radiating low-power regenerative navigation satellite signals (the power is no more than 1W), it can invade the UAVs navigation system, so as to intercept and control the UAVs that need to use the navigation system for flight control, so that it cannot fly into the protected area and ensure the low- altitude safety of the area.
Support band | GPS L1, GLONASS L1, Beidou and so on |
Signal transmitting power | ≤10dBm |
Defensive distance | 500m≤R≤1000m |
The ability to work continuously and independently | 24 hours autonomous operation |
Policy support | Defense Mode, No-fly Mode, Directional eviction (optional) |
Signal intrusion time | ≤10s |
Overall power consumption | ≤70w |
Operating temperature | -40°C ～ +70°C |
Product weight | ≤10kg（no Cable） |
Explosion-proof class | Ex nA IIC T6 |
Explosion-proof class | IP65 |
Explosion-proof class | 355mm×351mm×185mm |
There are three main scenarios generally recommended for the use of this type of device:
Core sensitive locations such as important political targets. Important national defense targets that are denied access to accurate geographic data while rejecting drone aerial photography for intelligence reconnaissance.
Critical locations for important economic targets such as energy oil, gas, and power. Prevent drones from spying as well as direct attacks.
Border border areas. Due to the popularity of drones, foreign forces also often use non-cross-border aerial photography to spy on China's intelligence, and when necessary, our side must lure the drones to a designated location for capture in order to avoid the leakage of important information.
