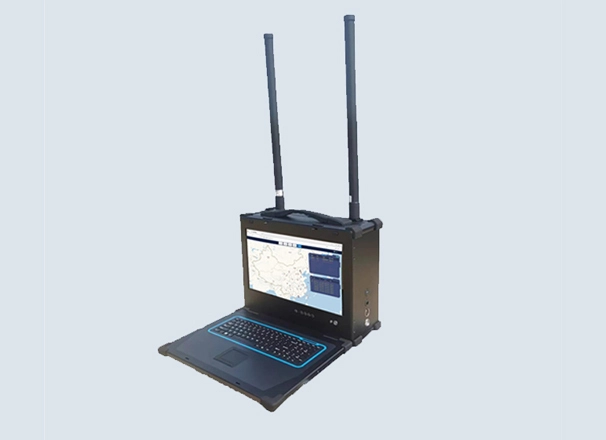

The UAV and pilot positioning system includes mobile hardware and a locally installed web application system that can locate multiple UAVs and their controllers at the same time within a certain range. The system continuously monitors the surrounding RF environment and displays the geographic location of the drone and remote control.
The principle of the system is to receive the drone beacon signal and decode the information in the radio message. The extracted information includes but is not limited to UAV model (SN code), remote control geographical location, return point geographical location, UAV current location, flight speed, flight altitude, etc. The system includes apis for forwarding inspection data to other systems, facilitating connections between individual systems.
Detection range | 0-2KM (The range depends on the antenna installed on the device) |
Detection time | Under normal circumstances ≤30 seconds (the detection time may change as the distance of the drone increases) |
Overall power consumption | 50W |
Temperature resistance | - 30℃～50℃ |
weight | 15KG |
Drone models can be detected | DJI Phantom 3, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI M300 |
dimension | 460*370*200mm |
The single device can display the position of the flying hand in real time;
It can locate the flying position of the drone;
The unique serial number of the UAV can be identified;
Multi-unit networking;
Second-level deployment, ready to boot;
Suitcase portable design, small size, carry around.
