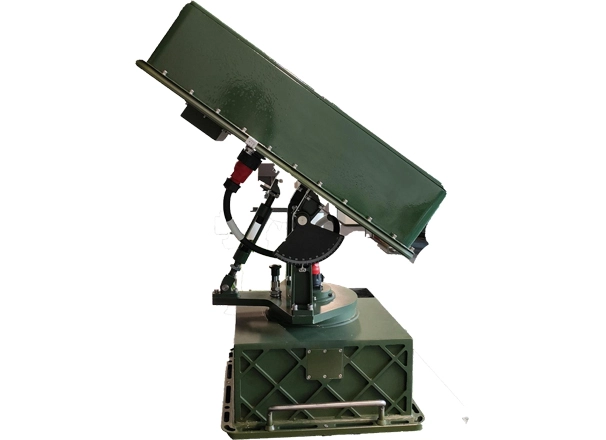

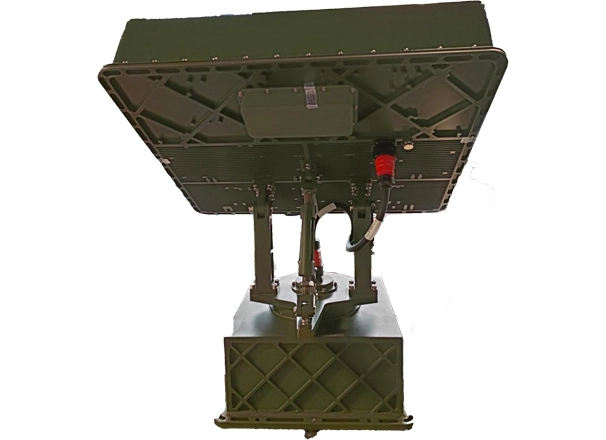

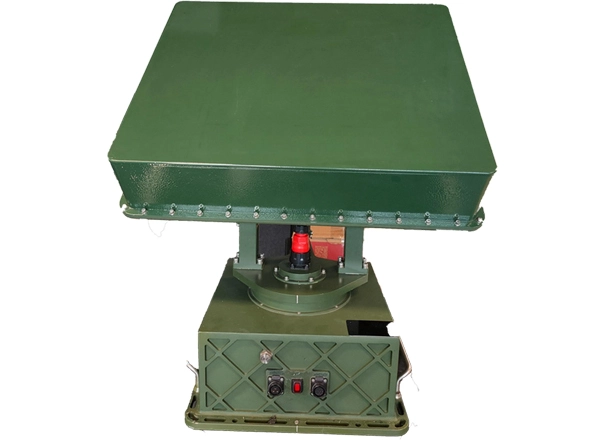

By transmitting electromagnetic wave and receiving the echo signal reflected back by the target, the radar detection equipment can obtain the position, speed, distance and other information of the target, which can realize the detection and positioning of common civilian UAVs.
Operating frequency | K-band, 24.05~24.15GHz |
Working system | Frequency modulated continuous Wave (FMCW) |
Peak/average transmit power | ≤3W |
Maximum detection range | ≥2500M (Mini drone RCS=0.01 m ²) |
Stable tracking range | ≥2000M (Mini drone RCS=0.01 m ²) |
Range accuracy | 3 meters |
Horizontal detection range | 0°～ 360° |
Pitch detection range | -14°~90°(adjustable) |
Quantity can be tracked simultaneously | ≥20 |
Radar supply voltage | 170~264VAC（50/60Hz） |
Radar power consumption | Less than 110W |
Standby operating temperature | －25℃～+55℃ |
Expand the withdrawal time | ＜5minutes |
Communication interface | RJ45 port /RS485 |
Enclosure protection level | IP65 |
Radar size | ＜30kg |
Defense area mapping | Can support the drawing of arbitrary polygon defense area |
