index | 5.8GHz | 2.4GHz |
Operating frequency | 5712-5920MHz | 2400-2500MHz |
Maximum output | 47dBm | 47dBm |
Output power | 50W | 50W |
In-band gain flatness | ≤1+0.5dBm | ≤1+0.5dBm |
Working current | 4A | 4A |
Clutter suppression | ≥65dBm | ≥65dBm |
Harmonic suppression | ≥11dBm | ≥11dBm |
Rf output interface | Socket | NSocket |
27V power supply port | Through the core capacitor/red and black lines | Through the core capacitor/red and black lines |
VCC power supply reference | 28V(24-28V) | 28V(24-28V) |

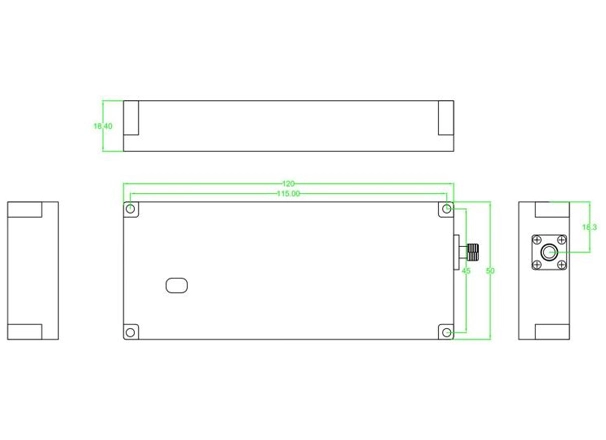

Mounting dimension | 115*45 | 115*45 |
Overall dimension | 120*50*18.4 | 120*50*18.4 |
Installation mode | A radiator/antenna must be installed for the power amplifier | A radiator/antenna must be installed for the power amplifier |
