With its advanced features and capabilities, this camera is an ideal choice for various applications such as surveillance, astronomy, machine vision, industrial process monitoring, and medical imaging.
Model Number | EXASW640PRO-Gige |
Sensor Type | InGaAs |
Format | 640 x 512 |
Spectral Response | 0.9μm ~ 1.7μm |
Pixel Pitch | 15μm |
Active Area | 9.6mm x 7.68mm |
Quantum Efficiency | >70%（1.0 μm~ 1.6μm） |
Frame Rate | 100 Hz |
Integration Type | Snapshot |
Integration Time | 100μs ~ 20 ms / Max 9ms at 100Hz |
Pixel Operability | >99.5% |
Full Well Capacity | 1.8M e- |
ADC | 14bit |
Analog video output | PAL, SMA interface |
Digital Output | Gnet (Gigabit Network Port) |
Software | Windows Apps/Windows SDK |
Trigger | RS-422 / TTL（Optional） |
Power Input | DC 12V ± 2V |
Power Dissipation | <4W（TEC Off） |

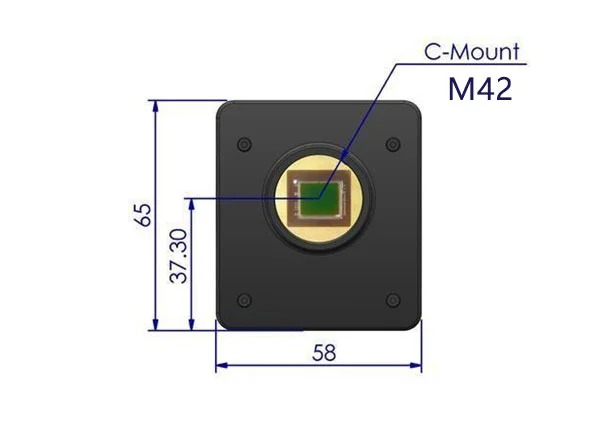

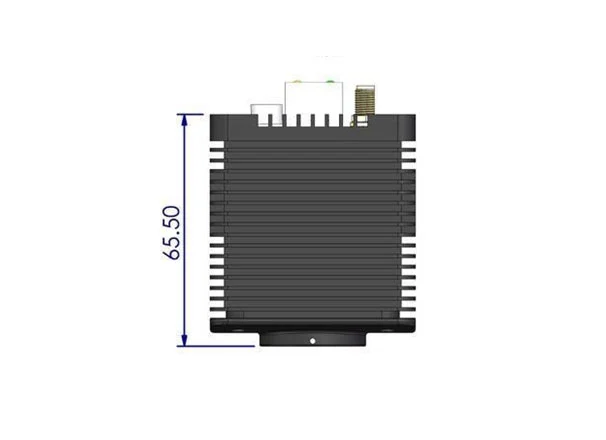

Dimensions (No Lens) | 65mm × 58mm × 65.5mm |
Lens Mount | M42*1 |
Operating Temp. | -20 ℃ ~ +50 ℃ / -40 ℃ ~ +70 ℃ (Optional) |
Storage Temp. | -40 ℃ ~ +80 ℃ |
On-board Image Processing | Single/two-point correction, bad pixel replacement, image denoising, image smoothing, controllable shutter compensation |
