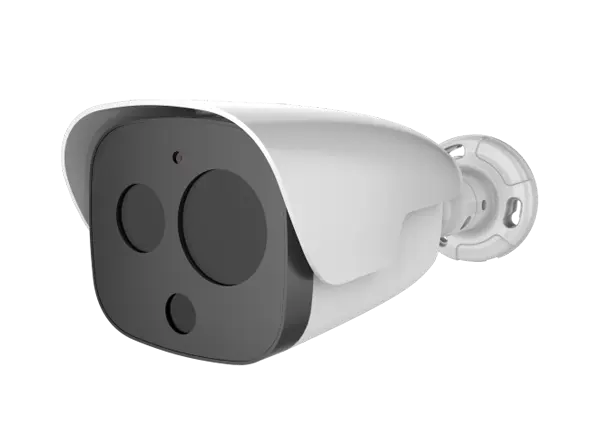

The EXA-IRG series high-definition thermal imaging dual light camera is equipped with a high-definition visible light and infrared thermal imaging movement, which can simultaneously monitor the temperature of the monitoring site and targets through visible light video and infrared thermal imaging. This China thermal imaging camera supports multiple image modes, and the front end can independently measure temperature without relying on the back-end platform construction, reducing server pressure. The product is equipped with over temperature and intrusion intelligent algorithms, supports multi-area temperature measurement, and can flexibly set warning types and thresholds. It supports integration with mainstream NVR-linked alarms and is widely used in fields, such as power, steel, chemical, and warehouse monitoring.
| EXA-IRG160 | EXA-IRG256 | EXA-IRG384 | EXA-IRG640 | |
| Infrared resolution | 160×120 | 256×192 | 384×288 | 640×512 |
| Infrared response band | 8-14μm | |||
| Equivalent temperature difference of infrared noise | ≤50mK(@25℃, F#=1.0) | |||
| Infrared field of view angle | 57°×44° | 55.6°×42.0° | 28.2°×21.3° | 32.9°×26.6° |
| Infrared color palette | 18 types including Iron Red, Rainbow, White Heat, Black Heat, etc | |||
| communication interface | One RJ45 10M/100M adaptive, one RS485/one alarm input/one alarm output | |||
| Temperature measurement type | Support multiple methods such as point temperature measurement, line temperature measurement, area temperature measurement, and shielding temperature measurement, | |||
| Size (mm) | 101×81×245 | 200×97×99 | 334.5×121.5×112.5 | 334.5×121.5×112.5 |
| Weight | ≤1kg | ≤1kg | ≤1.6kg | ≤1.6kg |
Non cooled focal plane detector with sensitivity higher than 50mk;
Equipped with high-definition visible light and infrared thermal imaging movements, the maximum resolution of thermal imaging is 384 × 288;
200W high-definition visible light movement, with clear imaging;
Full screen temperature measurement within the field of view, supporting point, line, and area temperature measurement, and automatic tracking of the highest and lowest temperatures;
Support multiple alarm methods such as exceeding high temperature and below low temperature;
Intelligent warning of abnormal temperature, supporting temperature alarm and fire alarm;
Support intelligent analysis and alarm for tripping, crossing boundaries, and intrusion in nighttime environments;
Support device front-end temperature measurement to reduce backend server pressure;
Support various color palettes such as black hot, white hot, iron red, and rainbow display;
Equipped with supplementary lighting, fearless of dark environments inside the cabinet;
Support H264 and H265 video compression algorithms;
Supports protocols such as RTSP, ONVIF, MODBUS, etc;
Provide SDK to support secondary development;
High sensitivity infrared thermal imaging for 24-hour monitoring and visualization of temperature information.
