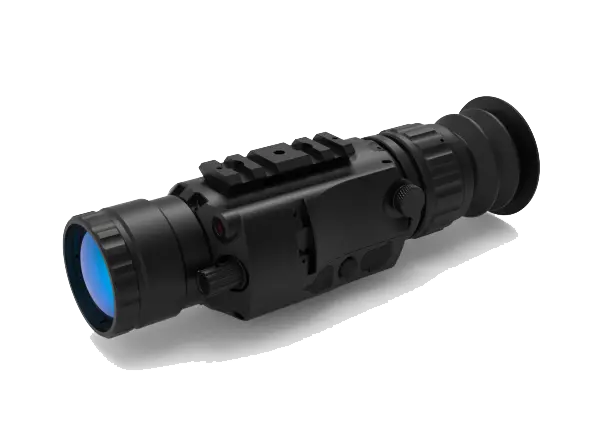

EXA-SN is a compact and lightweight multi-function thermal imaging scope. Adopting advanced polycrystalline silicon detector with high sensitivity, high refresh rate and high stability, it can be applied in various occasions such as nature observation, outdoor hunting, outdoor adventure, security and theft prevention, marine operation, night patrol and so on.
| Lens Data | ||||||||
| Manual lens @12um | F# | FOV | people | vehicle | ||||
| D | R | I | D | R | I | |||
| 9mm | 1 | 28.7° x 21.7° | 450m | 110m | 55m | 575m | 145m | 70m |
| 15mm | 1 | 17.5° x 13.1° | 750m | 185m | 90m | 955m | 240m | 115m |
| 19mm | 1 | 13.8° x 10.4° | 950m | 235m | 115m | 1210m | 300m | 150m |
| 25mm | 1 | 10.5°×7.9° | 1250m | 310m | 155m | 1595m | 395m | 200m |
| 35mm | 1 | 7.5° x 5.7° | 1750m | 435m | 220m | 2235m | 555m | 280m |
| 50mm | 1.2 | 5.3°×4.0° | 2500m | 625m | 310m | 3195m | 800m | 400m |
Three in one multifunctional single tube thermal imaging sight, can be used for head wearing, handheld, and aiming devices;
Heat map resolution: 640x480/384x288;
Thermal sensitivity NETD<40mk @ f1.0;
Adaptive Wide Dynamic (WDR) image processing with clear details;
Support PIP Picture in Picture;
With laser indicator;
Small size, easy to carry with one hand grip;
Knob coding menu, quick to operate;
USB-C interface available anywhere (supports charging, data transmission);
Supports CVBS external large screen and RS232 control;
Built in 32GB memory: can store 400000 snapshots or 40 hours of video;
1024 x 768 pixel OLED display with support for diopter adjustment;
7 hours of long endurance.
