The application of portable PTZ camera can effectively solve the pain point problems in the law enforcement industry. Firstly, it can improve the efficiency and quality of law enforcement and provide all-weather surveillance protection for law enforcement officers. Secondly, it can provide powerful evidence for case investigation and improve the detection rate and investigation effect. In addition, the system can provide regulatory data to provide data support and decision-making reference for law enforcement management. At a time when the law enforcement industry is becoming more and more complex, OUKE Dynamic Vehicle Mounted Surveillance System is an indispensable tool for law enforcement officers.
The system adopts advanced technology and design, which can realize high-definition, wide field of view, low-latency video surveillance and provide extremely convenient remote monitoring and video playback functions.
| Thermal imaging camera | Imager | uncooled detector |
| Effective Pixels | 384*288/640*480 | |
| Focal length | 13mm | |
| Frame rate | 25 frames per second | |
| Visible light camera | Imager | 1/3” inch progressive scanning CMOS image sensor |
| Effective Pixels | one thousand nine hundred and twenty × 1080P 25 frames with 2 million pixels | |
| Illumination | Starlight level ultra-low illumination | |
| focal length | 4.5mm-90mm | |
| Signal-to-noise ratio | ≥55dB | |
| Wide dynamic range | 120dB | |
| Strong light suppression | On/off | |
| Backlight compensation | On/off | |
| Pan tilt function | Horizontal range | 360 ° continuous rotation |
| Horizontal speed | 0.05°～60°/s | |
| Pitch range | -Rotate from 20 ° to+90 ° | |
| Vertical velocity | 0.05°～40°/s | |
| Other | Source | DC12V 2A±15%，50Hz |
| Consume power | Maximum power 20W | |
| Protection level | IP67 | |
| Working temperature | -35℃～70 ℃ | |
| Working humidity | Humidity less than 90% | |
| Weight | 2.5KG |

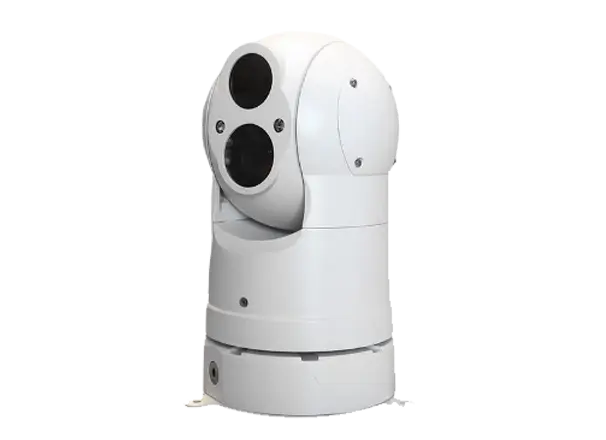

Built in network thermal imaging and high-definition network all-in-one machine. Can adapt to various environments for dual channel image monitoring;
Thermal imaging can be switched to laser, with a maximum night vision distance of up to 500 meters;
All weather environmental design, high-strength aluminum alloy precision casting shell, impact resistance and corrosion resistance, with a protection level of IP67;
There are two infrared lights (white lights) available inside;
360 ° unlimited rotation, vertical -20-90 °;
Optoelectronic control, anti magnetic, vertical self-locking function;
At a speed of 100 ° per second, it can quickly track objects;
High precision motors and algorithms, with preset positioning accuracy of up to 0.3 °;
High strength raw materials. Can be used in various harsh environments, supports 6 inspection trajectories starting from -35 ° pan tilt, and 128 preset positions.
