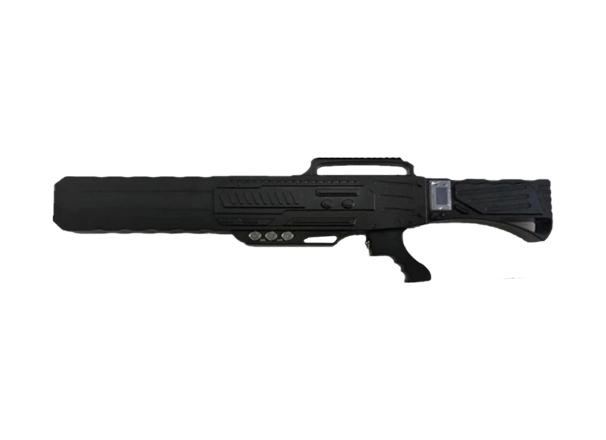

The gun-type UAV driving device is mainly for the compulsory control of the UAV or the flying model in the flying state, and the contact between the UAV and the remote control person is cut off at a distance. The interceptor can force the UAV to land or return to the air to ensure the safety of the low-altitude airspace in the region. Cut off any signal contact between the drone and the controller. The ground controller of the drone jammer gun cannot receive aerial video or pictures. The drone is unable to locate, forcing the drone to land, hover, or turn back.
Main engine size | Length 78cm, width 26cm, thickness 7cm |
Size of the detector | Physical parameters: 250x55X73mm(without support), 470g(with support) |
Power supply | The battery is removable. Equipped with two sets of carp batteries: 27V/5000mAh and 27V/8000mAh for 4 to 5 hours of continuous operation, external charger. |
Detection frequency band | 2.4GHz & 5.8GHz dual band |
Response time | 3s responds to alarm @ Standby: 6s responds to alarm @ shutdown Once the system starts |
Alarm mode | Sound alarm, dynamic warning graphics flashing |
Detector display screen | 1.8inchLED HD color screen |
port | Micro USB charging port |
Working mode | Detection mode (easy), debugging mode (Professional), measurement spectrum mode |
Working power supply | Built-in 5000mAh large-capacity battery, working time >8 hours, direct power supply can work continuously |
Mode of operation | One or two hand operation, can open any three frequency bands |
Heat dissipation mode | Air cooling |
Interception mode | Forced return, forced landing, hover, map transmission interference |
Intercept channel | Three channels |
Support band | Satellitenavigation:1560-1620MHz one way: remote control and data transmission: 2400MH-2500MHz Twoway remote control and datatransmission :5725- 5850MHz. (Optional 900M/1.2G/ reduced by 2.4G/5.8G for each) |
Radio frequency power | GPS-1.5G: 20W, two 2.4G: a total of 33W, two 5.8G: a total of 36W |
antenna | built-in |
Control distance | Open land ≥1500 m |
weight | Approx 6.5Kg (without charger) |
