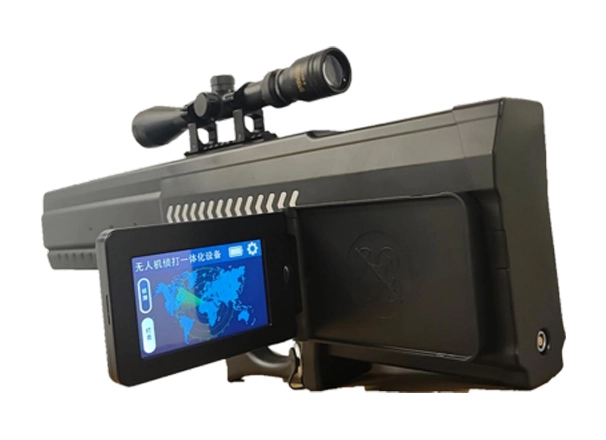

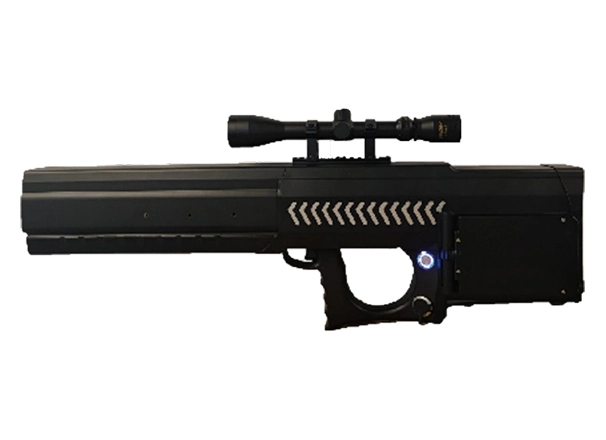

The portable UAV Detection and Strike integrated device integrates spectrum sensing, artificial intelligence and radio interference technology with detection, countermeasures, display and control, power supply and networking functions to effectively detect, identify and counter all types of drone jammer gun UAVs.
Screen control | 5-inch touch screen (resolution: 800*480) |
Display content | Power display, UAV model and schematic picture, frequency band information, UAV signal strength, locking direction, detection diagram |
Button/touch function | Power physical button, touch sound switch control, strike switch control, touch vibration switch control, brightness adjustment, detection/direction finding/strike/setting mode conversion, target direction recognition |
Alarm mode | Sound, vibration, interface display |
Detection band | 2.4G: 2400-2485MHz5.8G: 5150-5950MHz |
Detection range | >1.5km horizontal coverage 360° |
Detector type | Fixed wing aircraft, FPV, WiFi |
Detection response speed | <6s |
Direction finding accuracy | < 20 ° |
False alarm rate | = 5% |
Missing report rate | = 5% |
Interference band | 900 MHZ / 1.5 GHz / 2.4 GHz / 5.8 GHz |
Interference distance | 1.5km(open area) |
Interference power | 20W/ Single band |
Interference mode | Interference mode |
Operating temperature | -20 ~ 50℃ |
Charging interface | 1B2 core aviation socket |
Working hours on full charge | >8 hours |
Class of protection | =IP54 |
Power supply | Built-in removable carp battery 28V/6000mAhPower supplySupports external USB SV power supply |
Display language | Default: Russian, other languages can be customized |
Standard configuration | Portable detection and shooting integrated jamming gun, equipment charger, packing box |
Equipment weight | 3.2 Kg |
Box weight | 5.2 Kg |
Box size | 350*800*160 (mm) |
