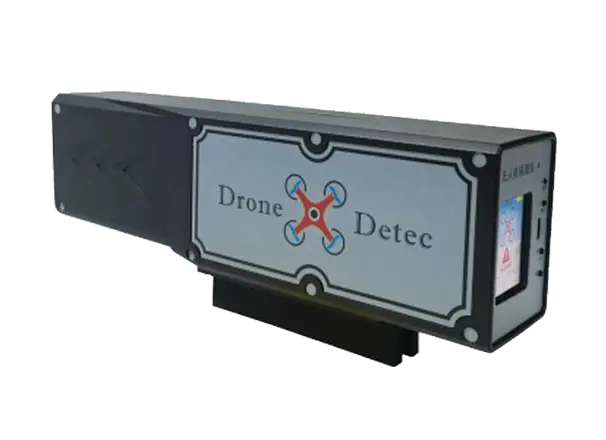

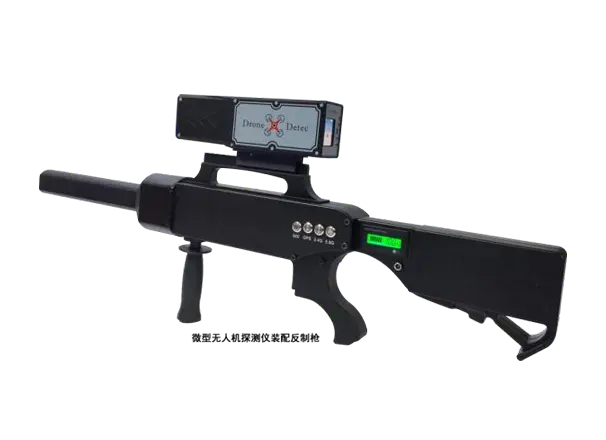

Uav detector is an assembled miniature UAV detector customized for civilian UAV black flight prevention and control UAV counter-gun demand, which can be flexibly assembled on a variety of UAV counter-gun direct use, is the best partner of UAV counter-gun. It can also be used separately in hand, or optionally set up with a grip and tripod; The detector belongs to passive detection, through the radio spectrum detection method detection, truly achieve no interference and no radiation, the operator can carry the detection work for a long time, the built-in directional antenna, to achieve the target and direction of the drone countermeasures.
Field measurement data, DJI spirit 4, the relative height of 100m, the farthest detection of 3.5 km (2.4G), 1.5 km (5.8G). Contact us for a video and graphic report of the outdoor test.
Detection frequency band | 2.4GHz & 5.8GHz dual band |
Detection mode | Radio spectrum exploration (passive) |
Detection range | Greater than 2km @2.4G, 1km @5.8G (built-in directional antenna @ relative height 100m@ open without strong interference) |
Response time | 3s respond to alarm @ Standby; 6s responds to alarm @ Shutdown → Power on |
Alarm mode | Sound alarm, dynamic warning graphics flashing |
Display screen | 1.8 "LED HD color screen |
Port | Micro USB charging port |
Working mode | Detection mode (easy), debugging mode (professional), measurement spectrum mode |
Operating key | Up and Down keys: Power on, menu, Confirm, parameter adjustment Up and down select |
| Working power supply | Add, subtract key: parameter adjustment add, subtract |
Physical parameter | Built-in 5000mAh large-capacity lithium battery, working time >8 hours, direct power supply can work continuously |
Standard configuration | 250x55X73mm(without support), 470g(with support) |
assortative | Micro drone detector, assembly rack, charging kit, packing box |
Product name | Grip kit, tripod kit |
Electromagnetic signal strength can be displayed;
Working hours are more than 8 hours;
Independent research and development, customized services;
Suitable for various UAV countermeasures;
Rechargeable lithium battery, power display;
1.8-inch display, dynamic graphics;
Drone jammer gun is suitable for all kinds of counter-guns, lightweight and portable;
Can directly measure display spectrum confirmation signal;
Provides detection mode, quick sensitivity switching;
Built-in data analysis algorithm to avoid false positives.
